NASA’s SWEET-15 Wing Design Achieves Significant Milestone in Ultra-Efficient Aircraft Development, Exceeding Structural Limits in Rigorous Testing
NASA researchers have successfully completed a series of grueling structural tests on a novel, long, and thin wing design known as the Structural Wing Experiment Evaluating Truss-bracing (SWEET-15), pushing the lightweight structure significantly past its intended operational limits. The encouraging results provide a critical validation for the design’s potential to dramatically improve fuel efficiency in future commercial aircraft, representing a pivotal step forward in the agency’s long-term vision for sustainable aviation. The comprehensive evaluation, which included a deliberate test-to-failure, confirmed the robustness of the innovative design and the advanced manufacturing techniques employed, offering invaluable data for the next generation of ultra-efficient airframes.
The Imperative for Ultra-Efficient Aviation
The global aviation industry faces mounting pressure to reduce its environmental footprint and operational costs. Fuel consumption remains a primary driver of both carbon emissions and airline expenditures. Current commercial aircraft designs, while highly refined, operate within established aerodynamic and structural paradigms that limit further significant efficiency gains. NASA’s Aeronautics Research Mission Directorate (ARMD) has therefore prioritized the development of revolutionary aircraft concepts capable of achieving substantial reductions in fuel burn, emissions, and noise. The truss-braced wing concept, specifically the Transonic Truss-Braced Wing (TTBW), is a cornerstone of this strategy, aiming to usher in a new era of aviation often referred to as "N+3" generation aircraft, signifying technologies three generations beyond current operational systems. The SWEET-15 project directly supports this overarching goal, focusing on validating the structural integrity and performance of a representative truss-braced wing configuration.
The Evolution of Wing Design: From Cantilever to Truss-Braced
Traditional commercial aircraft typically feature cantilever wings, where the wing extends directly from the fuselage without external support. While proven and reliable, this design necessitates a thick wing root to withstand immense bending forces, leading to increased weight and aerodynamic drag. For decades, engineers have explored alternative configurations to overcome these limitations. The concept of a truss-braced wing, which employs an external strut (or truss) to support the wing further outboard, is not entirely new; early biplanes and some smaller aircraft utilized similar principles. However, applying this concept to large commercial airliners flying at transonic speeds presents unique aerodynamic and structural challenges.
The fundamental advantage of a truss-braced wing lies in its ability to achieve a much higher aspect ratio – meaning a longer, thinner wing relative to its chord (width). High-aspect-ratio wings are inherently more aerodynamically efficient, generating more lift for a given amount of drag. However, making such a long, slender wing structurally sound without excessive weight is the primary hurdle. This is where the external truss comes into play. By providing additional support, the truss significantly reduces the bending moment at the wing root, allowing for a thinner, lighter wing structure. This weight reduction, combined with the improved aerodynamic efficiency, translates directly into substantial fuel savings. NASA’s Transonic Truss-Braced Wing (TTBW) concept, from which SWEET-15 draws inspiration, envisions a future aircraft capable of achieving at least 30% greater fuel efficiency compared to today’s best-in-class airliners, alongside significant reductions in nitrogen oxide emissions and noise.
SWEET-15: A New Frontier in Structural Innovation
The SWEET-15 test article represents a tangible step in realizing the TTBW concept. Measuring 15 feet in length, this experimental wing embodies the crucial characteristics of its full-scale counterpart: a high aspect ratio, a slender profile, and a sophisticated internal structure supported by an aerodynamic main strut and a secondary "jury strut." The design’s structural integrity is heavily reliant on advanced composite materials, specifically carbon fiber composites, known for their exceptional strength-to-weight ratio, fatigue resistance, and tailorability.
The genesis of the SWEET-15 design involved the meticulous integration of five distinct advanced composite manufacturing and assembly technologies. These innovations are critical for producing complex, lightweight, and robust structures that can withstand the rigors of flight while maximizing efficiency. While specific details of all five technologies remain proprietary or subject to ongoing research, they generally encompass areas such as automated fiber placement (AFP) for precise material layup, advanced resin infusion processes, innovative bonding techniques for joining dissimilar materials, and out-of-autoclave curing methods to reduce manufacturing costs and energy consumption. The application of these cutting-edge techniques is paramount for achieving the delicate balance between structural integrity and minimal weight required for the truss-braced wing configuration.
From Virginia to California: A Journey of Advanced Composites
The journey of the SWEET-15 test article began at NASA’s Langley Research Center in Hampton, Virginia, a hub of aeronautical research and advanced materials development. Here, a dedicated team of engineers and scientists meticulously designed, analyzed, and fabricated the complex wing structure. A key component in its creation was the Integrated Structural Assembly of Advanced Composites (ISAAC) robot. ISAAC is a state-of-the-art robotic system designed to automate the production of large, intricate composite structures for aerospace applications. Its precision and repeatability are vital for creating lightweight, strong, and defect-free composite components, ensuring the structural integrity that was later validated in testing.

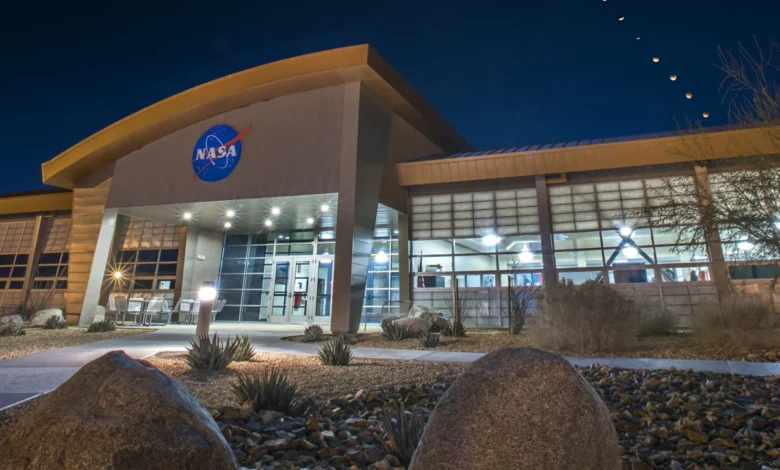

Following its fabrication and initial quality checks at Langley, the 15-foot test article embarked on a cross-country journey to NASA’s Armstrong Flight Research Center in Edwards, California. Armstrong, renowned for its flight testing expertise and advanced research facilities, was selected as the site for the rigorous structural evaluations due to its specialized Flight Loads Laboratory. Prior to testing, engineers at NASA Langley also played a crucial role in preparing detailed safety protocols and assisting with the laboratory setup, ensuring that the complex and potentially destructive tests could be conducted with maximum safety and data fidelity.
Rigorous Validation: Inside the Flight Loads Laboratory
Over several months, the SWEET-15 wing underwent an exhaustive series of static load tests within Armstrong’s Flight Loads Laboratory. This facility is equipped with specialized hydraulic actuators, load frames, and control systems capable of applying precisely calibrated forces to aircraft structures, simulating the diverse and extreme conditions wings encounter during flight. Engineers systematically bent and twisted the test wing, gradually increasing the applied loads to mimic everything from routine maneuvers and turbulence to severe gust encounters.
To meticulously track the wing’s response, the structure was instrumented with an extensive array of sensors. Numerous strain gauges, which measure localized deformation, were strategically placed across the wing’s surface and internal structure. Crucially, the test also utilized advanced fiber-optic strain sensors (FOSS). Developed through NASA’s own research, FOSS technology offers significant advantages over traditional electrical strain gauges, providing distributed sensing capabilities with higher data fidelity, lighter weight, and immunity to electromagnetic interference. This allowed researchers to capture a more comprehensive and precise picture of how stresses and strains propagated throughout the complex composite structure under varying loads. The data streams from these thousands of sensors were continuously monitored and recorded, providing a rich dataset for post-test analysis.
Initial findings from this phase of testing were highly encouraging. The wing consistently withstood the anticipated in-flight forces without any discernible issues, performing exactly as predicted by NASA’s sophisticated computer models. This direct correlation between computational simulation and real-world structural response is a profound validation, not only of the SWEET-15 design itself but also of the advanced modeling techniques and the novel manufacturing approaches used to connect the wing’s composite parts. Such validation is critical for future airframe development, as it reduces the need for costly and time-consuming physical prototypes by increasing confidence in virtual design iterations.
Pushing Beyond Limits: The Test-to-Failure Revelation
The ultimate phase of the SWEET-15 structural evaluation was a deliberate and meticulously planned test-to-failure. This critical step involved increasing loads far beyond the wing’s certified design limits, pushing the structure until it demonstrably failed. While seemingly counterintuitive to intentionally destroy a test article, this process provides invaluable insights that cannot be gleaned from non-destructive testing alone. By observing how and where a structure fails under extreme stress, engineers gain a deeper understanding of its ultimate load-carrying capacity, its failure modes, and the safety margins inherent in the design. This data is essential for refining future designs, ensuring maximum safety, and optimizing weight.
The SWEET-15 wing demonstrated remarkable resilience, ultimately failing at approximately 127% of its design limit load. This figure signifies a substantial safety margin beyond what the wing is expected to encounter even in the most severe operational conditions. The visible damage appeared near the back edge of the wing and in the upper wing cover, providing specific points of interest for further analysis. More importantly, the test offered critical insights into the behavior of the complex joints connecting the main wing to its primary aerodynamic strut and the secondary jury strut. These connection points are often areas of high stress concentration, and understanding their performance under forces beyond the expected flight envelope is crucial for ensuring the overall structural integrity of the truss-braced configuration. The data collected during this ultimate load test will directly inform future structural analyses and design refinements for full-scale TTBW aircraft.
A Collaborative Triumph: NASA’s Integrated Approach
The success of the SWEET-15 testing program stands as a testament to NASA’s collaborative spirit and its integrated approach to aeronautics research. The project brought together expertise from multiple NASA centers and diverse technical disciplines. Researchers at NASA Langley were instrumental in the initial conceptualization, detailed design, material selection, and innovative manufacturing processes utilizing facilities like the ISAAC robot. Meanwhile, engineers and technicians at NASA Armstrong provided the specialized testing environment, instrumentation expertise, and the operational rigor required for such a demanding evaluation.
Furthermore, the project leveraged advanced agency-developed technologies such as the Fiber Optic Sensing System (FOSS), which has seen application in both aircraft and spacecraft. The ability to deploy such cutting-edge tools, developed internally by NASA, underscores the agency’s unique capability to push the boundaries of aerospace engineering. This cross-center, multi-project collaboration is a hallmark of NASA’s Research Technology Mission Directorate, which oversees the Subsonic Flight Demonstrator project under which SWEET-15 was conducted. The successful testing of SWEET-15, alongside other innovative components within this project, marks a significant milestone in NASA’s broader aeronautics research agenda.
Paving the Way for Future Flight: Implications for Commercial Aviation
The successful structural validation of the SWEET-15 wing carries profound implications for the future of commercial aviation. The primary benefit lies in the potential for substantial fuel savings. By enabling the development of aircraft with significantly higher aerodynamic efficiency and reduced structural weight, the truss-braced wing concept could lead to a 20-30% reduction in fuel consumption compared to current models. For airlines, this translates directly into lower operational costs, which could potentially be passed on to consumers in the form of more affordable airfares, while also improving profitability.
Beyond economic advantages, the environmental impact is equally significant. A reduction in fuel burn directly correlates to a proportional decrease in carbon dioxide (CO2) emissions, a major contributor to climate change. Furthermore, the ability to design quieter, more efficient aircraft contributes to overall environmental sustainability goals. While the adoption of such revolutionary designs by the commercial sector is typically a decades-long process, involving further development, flight testing, and rigorous certification by regulatory bodies like the Federal Aviation Administration (FAA), the SWEET-15 results provide a robust foundation for these future endeavors. They de-risk a critical structural aspect of the TTBW concept, making it a more viable candidate for future development programs, potentially leading to X-plane demonstrators that fly and validate the full-scale concept.
The Road Ahead: Data Analysis and Next Generation Aircraft
With the structural testing phase now complete, NASA researchers are embarking on the crucial next step: a comprehensive and in-depth analysis of the vast amount of data collected from the SWEET-15 test article. This analysis will involve detailed comparisons between the observed structural responses and the initial computational predictions, identifying any discrepancies and refining existing models. The insights gained from the failure analysis, in particular, will be invaluable for optimizing the design of critical joints and composite layups in future iterations.
The findings from SWEET-15 will directly inform the ongoing development of future airframe designs, not just for the TTBW concept but potentially for other advanced configurations as well. This research is integral to NASA’s sustained efforts to develop a suite of more efficient, quieter, and environmentally friendly aviation technologies. The agency continues to invest in fundamental research across various disciplines, including advanced propulsion systems, sustainable aviation fuels, and sophisticated air traffic management, all aimed at transforming air travel for the 21st century and beyond. The SWEET-15 project represents a significant stride in this ambitious journey, moving closer to a future where ultra-efficient aircraft are a commonplace reality, benefiting both the planet and the global economy.
